Connection summary
A 5 MW connection to SSEN’s 33 kV network, at the site’s western boundary.

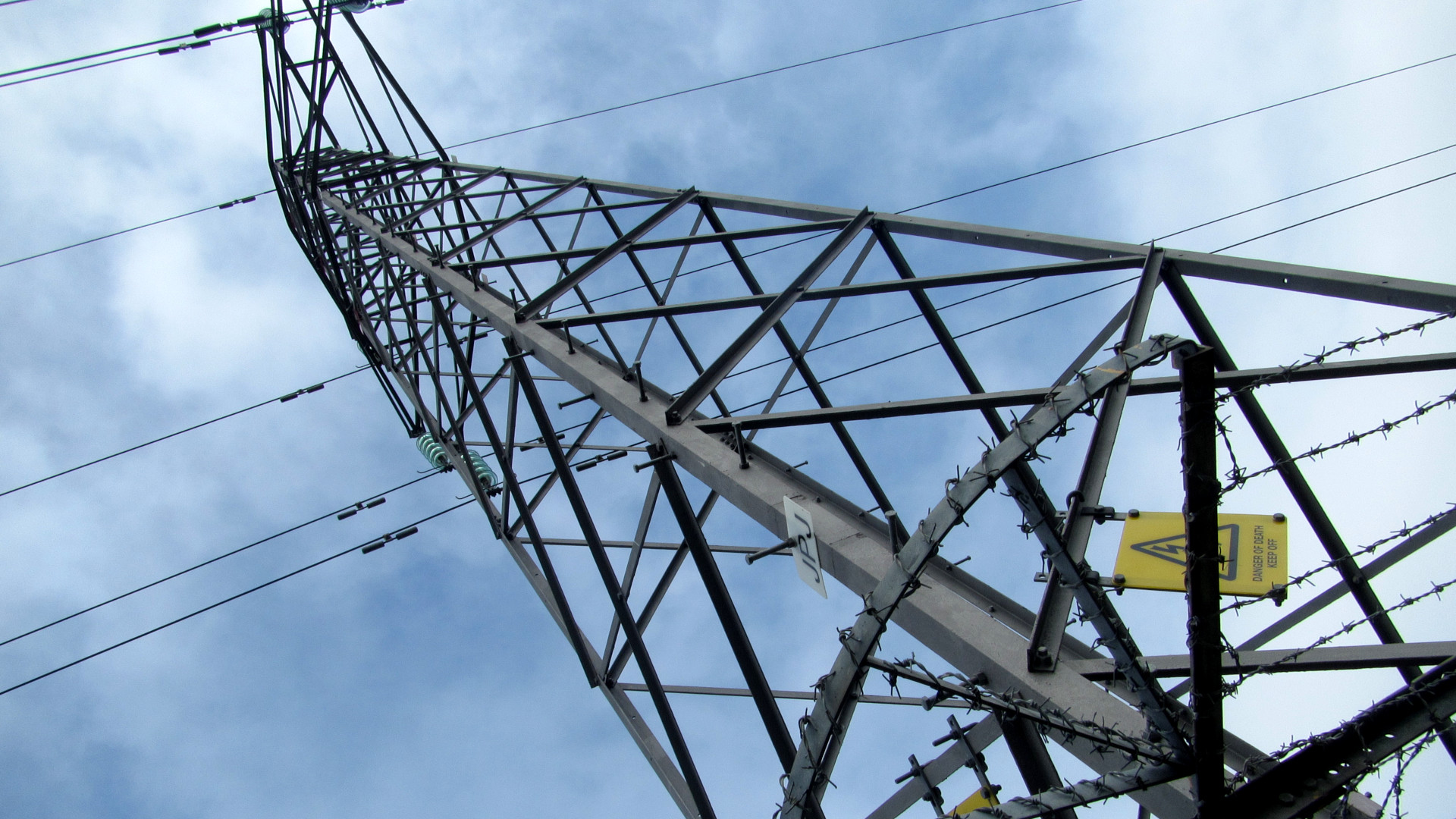

The point of connection is the 33 kV overhead line that runs along the western boundary, so the connection needs no significant off-site infrastructure.
Strichen has a countersigned Gate 2 variation agreement with SSEN under NESO’s reformed connections process. SSEN estimates the connection date as 31 October 2027. The connection depends on overhead line reinforcement that SSEN has already contracted under a separate project.
Full terms are in the connection offer in the data room.
Grid connection
- Status
- Gate 2 Phase 1 connection offer secured
- Network operator
- Scottish and Southern Electricity Networks (SSEN)
- Export capacity
- 5 MW ACImport capacity 100 kW
- Voltage
- 33 kV
- Point of connection
- Overhead line, western boundary
- Estimated connection
- 31 October 2027SSEN estimate, subject to variation
- Security of supply
- Non-firm (single circuit)Export capacity firm and unconstrained
- Transmission works

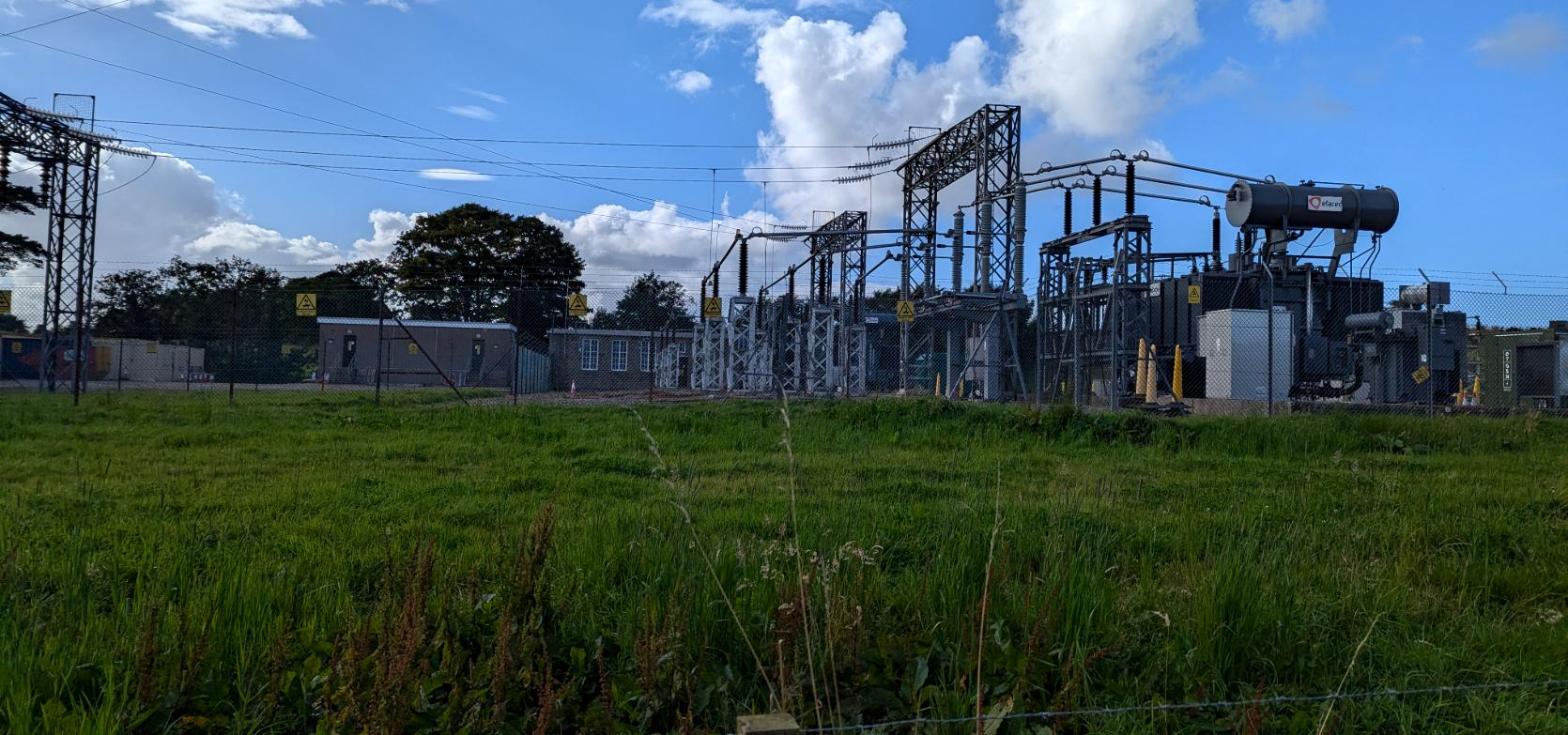

- None identifiedProtection setting changes at Strichen 132/33 kV substation
Interested in Strichen Solar Farm?
Contact us to sign an NDA and get access to the data room.
